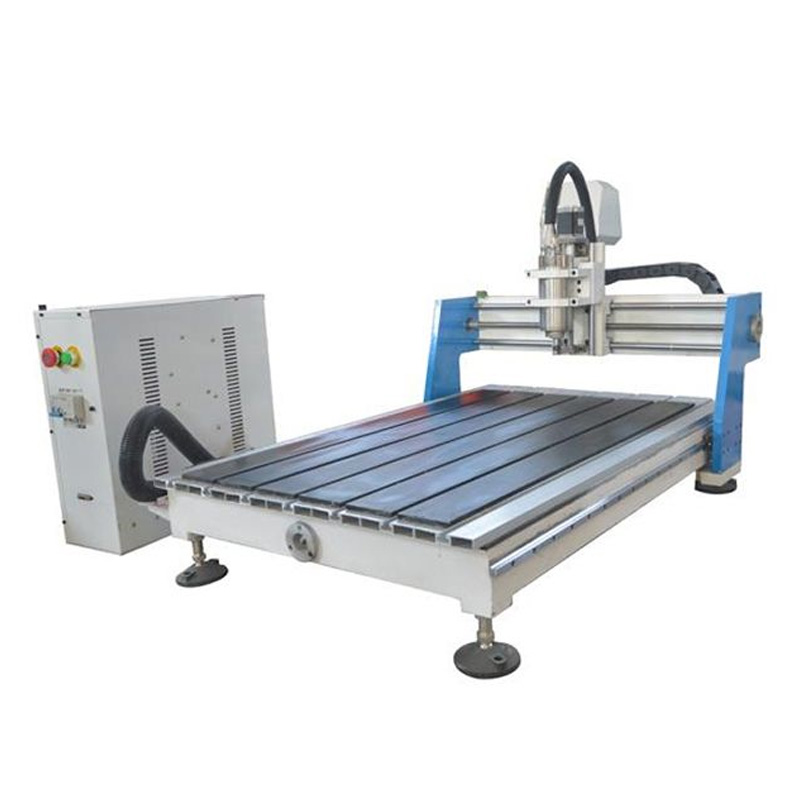

MISSILE CNC 6090 MINI CNC MACHINE
Missile CNC- MISSILE CNC 6090 MINI CNC MACHINE
- Our desktop cnc router is a popular model for the foreign clients. This desktop cnc router use ball screw and stepper control for 3 axes and could design as your requirement, an economic choice of cnc router.It is good for wood cutting or carving, sign making, soft metal processing. Very convenient to delivery.
| Product name | Missile cnc 6090 mini desktop router |
| X,Y,Z Working Area | 600*900*200mm |
| X,Y,Z repositioning Positioning AccuraIT | ±0.02mm |
| Table Surface | T-slot Extrusions |
| Frame | Cast Aluminium |
| X, Y, Z Structure | Ball Screw |
| Max. Rapid Travel Rate | 6000mm/min |
| Rail Configuration | Y square rail;X,Z round rail |
| Max. Working Speed | 4000mm/min |
| Spindle Power Motor | 1.5Kw water cooling spindle |
| Spindle Speed | 0-24000RPM |
| Drive Motors | Yako driver |
| Working Voltage | AC220V/50/60Hz |
| Command Language | G code |
| Operating System | Nc-studio |
| Collet | ER16 |
| X,Y Resolution | <0.01mm |
| Software Compatibility | Wentai software |
Description
- German Ball Screw Nut and square rail.
- Broken-point memory ensures the continuity of work when inciddent happens, Save of many processed points.
- Gantry movement ensures the undeformation after a long-time work as well as a higher accuracy.
- High power cutting of the Metal CNC Router ensures the smoothness and clearness of the processed metal.
- Wide range of use: Architecture model, school, government departments and enterprises .
- Cnc router use 1.5kw/2.2kw/3.0kw water-cooling spindle for this machine. The machine is very quite, it won’t disturb you too much.
